Bullnose 36SV High Speed Barge

MetalCraft Marine

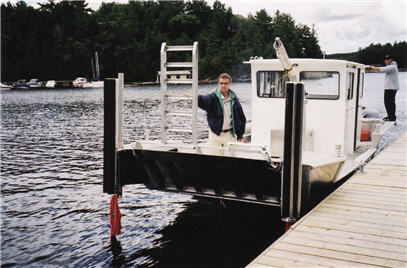

Bullnose 36SV for Bighorn National Park.

Bullnose 36 SV
Bighorn National Park
Max speed40 knots
Weight6,500 lb (light base boat)
Propulsion500 hp

The Bullnose Line (Landing Craft) is a lightweight, high-speed, trailable commercial boat. Uniquely designed with a self draining floor and functional bow gate the Landing Craft boasts a V Haul for easy maneuverability without jeopardizing cargo carrying capabilities. Starting at a length of 22' this low maintenance, stable and strong commercial planning craft will provide the most economical means of cargo transportation.

  • Horsepower is what we would recommend for outboards and are not maximums.
  • Horsepower would be based on the vessel mission.
  • In all cases we can install outboard, stern drive and jet, gas or diesel.
  • Drafts are hull, not engines, in lightship departure condition.
  • Weights can vary depending on the wheelhouse, gear, power, etc.

Standard Features

Aluminum: 5052 (fresh water) marine-grade aluminum
Standard 30" sides
Centre Console - 32" 2w/plexiglass windshield
Bow locker
2 sets paddle holders
Stern seat locker - full width
Built-in 30-gallon fuel tank
Inspection Plates
Single Outboard bracket
Navigation Lights & Horn
Split pipe on bow with guards
Removable stern mast
Centre keel wear bar
Stern lifting lugs
Cable steering
Electrical panel - 6 breakers
3/16" 5050 marine grade aluninum plate
Six 6" cleats
Self-bailing deck tread plate floor
Sea scuppers
Heavy extrusion framing - vertical/horiz/long


  • 5083 Alloy (salt water applications)
  • Ice Package (1/4" bottom plate)
  • Fully enclosed wheelhouse 5X6
  • Partially enclosed wheelhouse 4 X 6
  • Hydraulic Steering - 150/300 Hp side mount
  • Helm Station T-Top roof
  • Full walk thru windshield on dual consoles
  • Width of boat aluminum hardtop with open sides and rear. Solid front centre console with 3 safety glass windows - 8 per. Coverage
  • ViewFlex and Sunbrella curtains
  • Options in lieu of ViewFlex
  • Console / windshelds
  • Front console seat with cushion
  • 1" aluminum pipe railing (per foot)
  • Stern seat cushion
  • Deluxe adjustable helm seat
  • DC Receptacle
  • Defrost fan
  • Heater - 30,000 btu with ducting
  • Sliding side windows - Vetus (ea.) 24" x 32"
  • Cabin lighting
  • 12" stainless grab handles (ea)
  • Cabin eyebrow handrails (alum)
  • Bomar Hatch mounted in cabin top (16" x 16")
  • Windshield Wipers installed (heavy duty) each
  • Storage seat box
