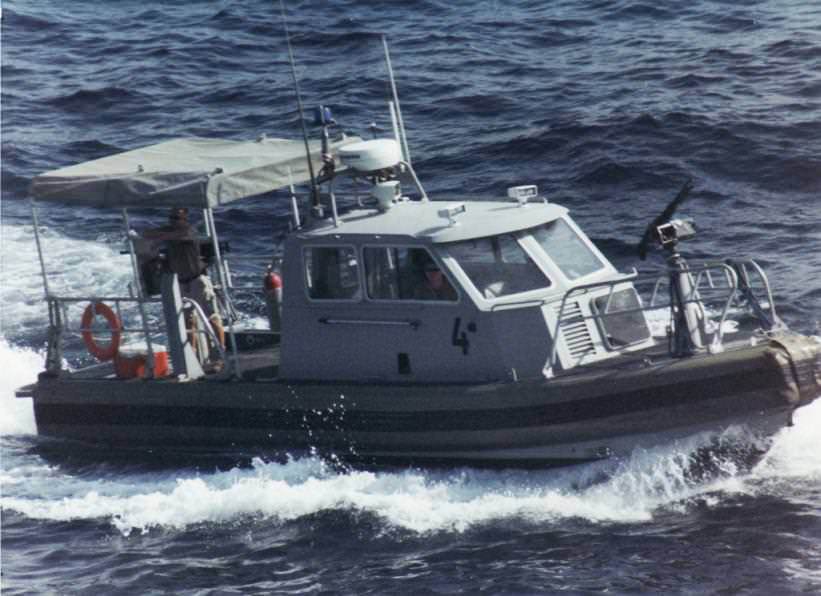

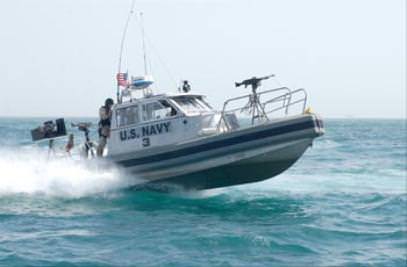

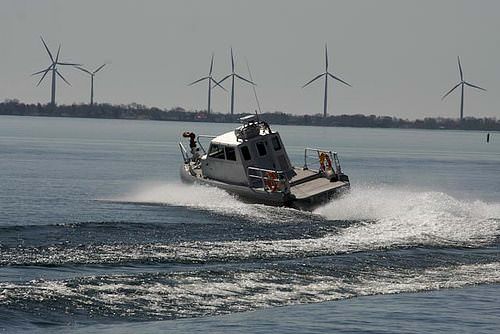

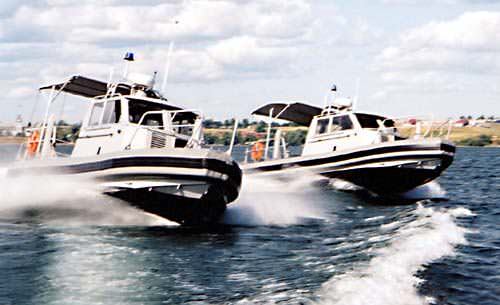

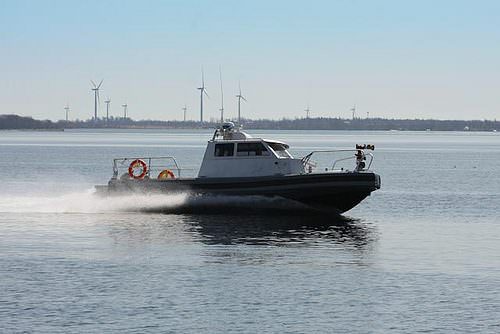

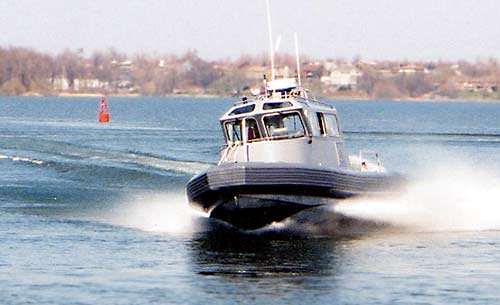

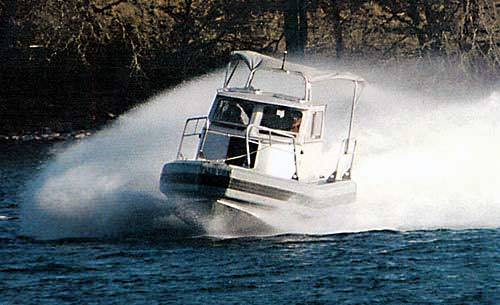

Kingston 32 Patrol RIB

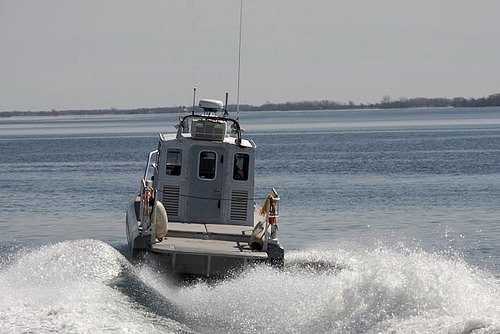

Kingston 32 RIB Patrol Boat MetalCraft Marine Kingston 32 RIB Patrol Boat
Kingston 32 Patrol RHIB
LOA 32’1"
LWL 26’3"
BOA 8’11"
Draft fully loaded 22"
Dry weight 10,100 lbs.
EnginesTwin Cummins 6BTA5.9
@ 355 HP
DrivesHamilton 274 Jets
Max Speed Approx 40 knots
w/full fuel and 5 crew
Fuel Capacity 200 US gallons
Range 210 Nautical Miles
Dead Rise Aft 24 Degrees
MetalCraft Marine Kingston 36 drawing

Standard Features:

  • MCM 10 year hull warranty
  • Welded Aluminum Hull and cabin
  • Cabin aft bulkhead with door
  • Opening forward and side windows
  • Unpainted matte finish on hull and cabin
  • Grab rails and hand holds in and out
  • Anti slip rubber matting on cabin sole
  • Non-skid coating on all walking flats
  • Bow and stern eyes
  • Water tight deck hatches x 3
  • Electric and manual bilge pumps
  • Insulated engine compartment w/hinged coves
  • Wing Fendering System
  • Stainless steel hardware
  • Mooring cleats

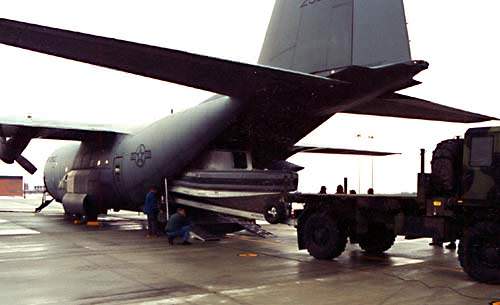

  • C-130 certified (requires removable cabin)
  • Nav lights

Optional Features:

  • Konrad stem drive w/1:1 marine gear
  • Overwide sponson
  • Removable cabin for aircraft transport
  • 4 lift points w/certified lift sling
  • Built in positive-level flotation
  • 12 or 24 VDC dual battery system w/switch to ABYC specification
  • Genset, 5 kw
  • I-IVAC 13,500 BTU A/C-heater, roof mounted
  • Battery charger
  • Gun mount foundations
  • Aft deck canopy
  • Ready service ammo lockers (3 each)
  • Armor
  • Split engine hatch
  • Tow bitt package (6 each)
  • Raised vent boxes, twin
  • Tic down rings
  • Boat cover
  • Dive ladder
  • Zolotone interior coating
  • Interior fire resistant insulation/cladding
  • Shipping/storage cradle
  • Shipping preparation w/packaging
  • Drawings package/Cots manual
  • ILS package
  • Training
