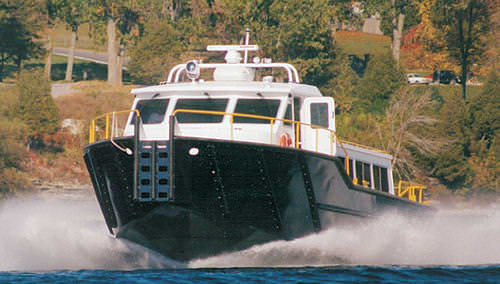

Kingston 54/60 High-Speed Crew/Patrol Boats

Kingston 54-60 Crew boat

The Kingston 54/60 crew and patrol boats are fast, maneuverable, versatile, rugged and reliable vessels suited to a wide range of transport and patrol applications.

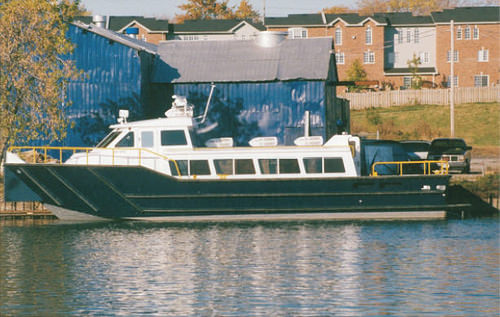

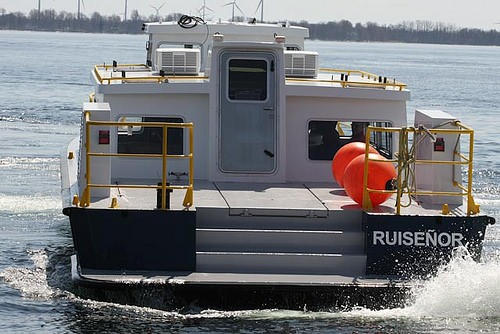

Panama Canal crew boat
LOA 54’
Beam 18’3”
Draft 2’6”
Weight 44,000 lbs.
Loaded Wt 57,000 lbs.
Max Speed 41 knots
Max Speed
(loaded)		 38 knots
Capacity 42 + 3 crew
Fuel Cap. 700 gal
Propulsion: 3x600 hp Cat Diesels & Hamilton 362 jets

The Kingston Series has been in our product line since 1987 and has had many successes, primarily in the Patrol boat market. The boat has very good handling characteristics in terms of tracking, speed out of the hole, wave handling, and turning radius.

The main functions of the boat’s planing surfaces, which are an elongated center planing flat and two outboard step chines, are adjusted in conjunction with the deadrise angle to accommodate the sea keeping conditions the particular operator will encounter.

The Kingston hull form is a proprietary design featuring a delta-pad center-planing-flat which provides the additional lift required for a low trim-angle through the pre-planing transition zone, the "hump".

MetalCraft Marine Kingston 54-60 Crew Boat drawing MetalCraft Marine Kingston 54-60 Crew Boat drawing

Standard Features

  • MCM 10-year hull warranty
  • Proven PowerLift hull ©1987
  • 5/16” marine grade aluminum hull plate
  • 1/4” aluminum decks with non skid
  • 5” full-length rub rail
  • Welded aluminum handrails forward
  • Watertight below-deck bulkheads

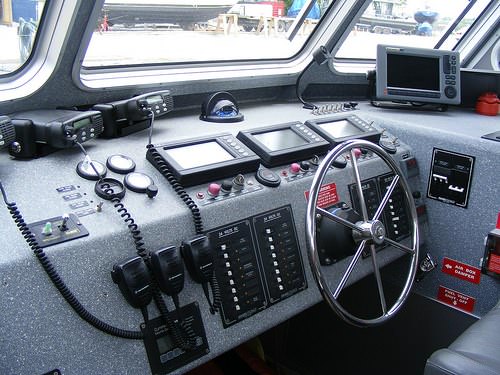

  • Full instrumentation and controls
  • Hydraulic steering

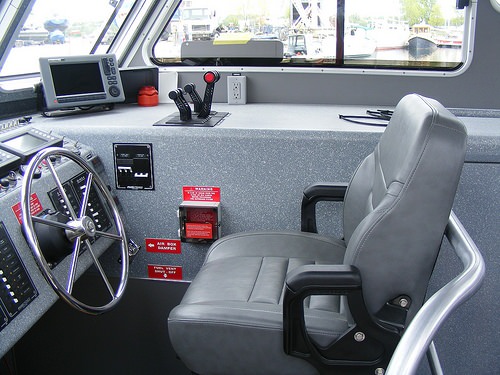

  • Suspension helm seats
  • Marine head with holding tank
  • Sliding aluminum windows
  • Tool/Workroom
  • Weathertight aft/side cabin doors
  • 12volt/110 volt custom electrical panels
  • 700 gallons fuel
  • Navigation lights
  • Full swim platform/jet guard
  • Meets ABS Welding & Hull Structure standards
  • Electrical to ABYC/I-EEE Standards

Options

  • Engine Options: triple or twin diesels
  • Drive options: jets, outdrives, shafts, Crewboat / Patrol / Survey / Tour
  • Drop down tailgate
  • Drop down dive doors with integral ladders
  • Removable aft deck railings
  • Heating, air conditioning options
  • Electronics installation: radar, VHF, GPS, sounder, hailer, etc.
  • Duel helm stations/removable flybridge for shipping
  • Full marine galley

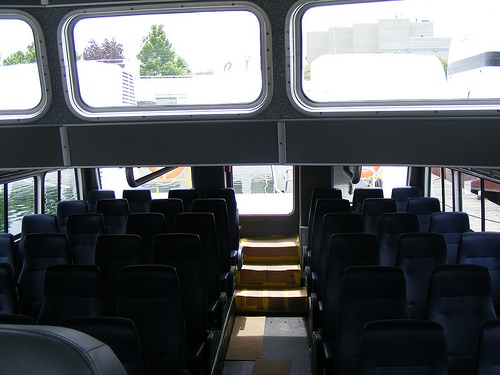

  • Seating options up to 50 passsengers
  • Painting to customer spec
  • Additional fuel tankage
  • Lighting arrangements
  • Lifesaving equipment
  • Canopy
  • Push knees
  • Genset options
  • Rubrail options
  • Combatant arrangements
