High-Speed 54/60 ft Crew and Patrol Boats
Kingston 54/60 patrol boats are fast, maneuverable, versatile, rugged and reliable vessels suited to a wide range of transport and patrol applications.

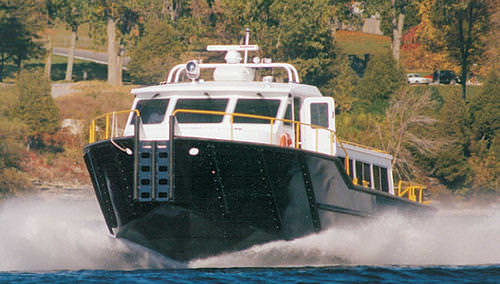

| Kingston 54/60 Panama Canal 54'/60' transport-optimized rapid deployment vessel | |
|---|---|
| Max speed | 41 Knots, 38 knots loaded |
| L.O.A. | 54'/60' |
| B.O.A. | 18'3" |
| Draft | 2'6" |
| Weight | 44,000 lb |
| Weight (Loaded) | 57,000 lb |
| Capacity | 42 men + 3 crew |
| Fuel Cap. | 700 gal |
| Engines | T3x600 hp Cat Diesels |
| Jets | Hamilton 362 |

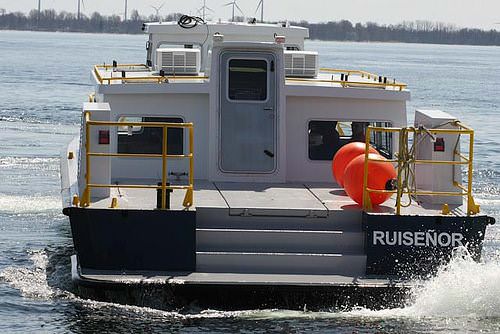

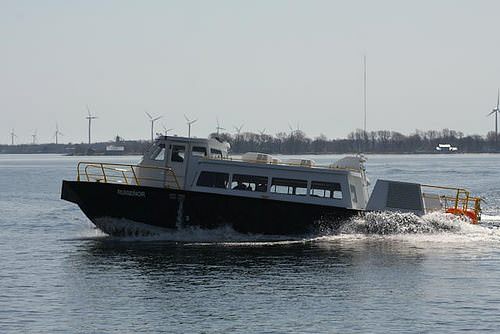

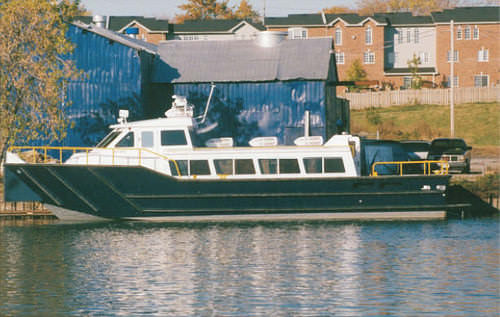

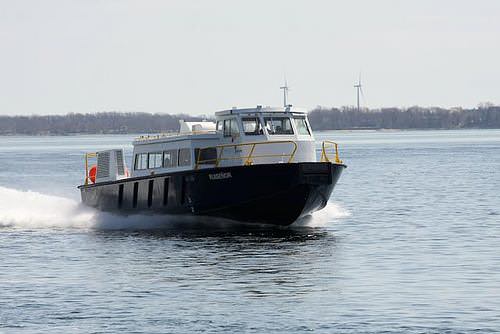

MetalCraft Marine high-speed crew and patrol boats are fast, maneuverable, versatile, rugged and reliable vessels suited to a wide range of transport and patrol applications.

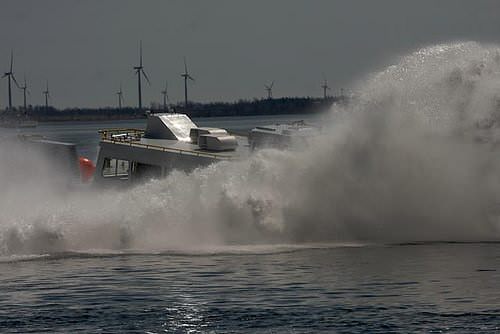

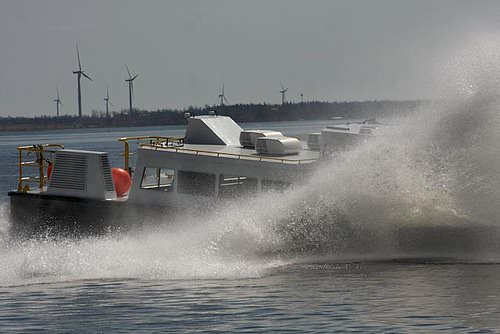

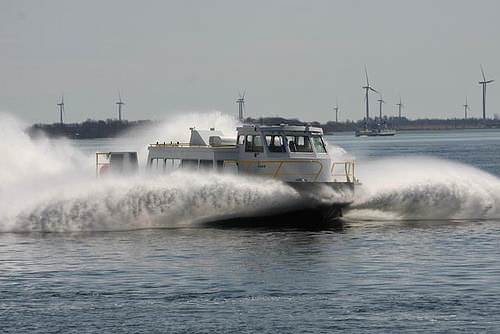

The Kingston Series has been in our product line since 1987 and has had many successes, primarily in the Patrol boat market. The boat has very good handling characteristics in terms of tracking, speed out of the hole, wave handling, and turning radius.
The main functions of the boat’s planing surfaces, which are an elongated center planing flat and two outboard step chines, are adjusted in conjunction with the deadrise angle to accommodate the sea keeping conditions the particular operator will encounter.
Testimonials
Mr David Bishop,
Chief Engineer, Dredging Division, Panama Canal Commission Balboa, Panama
The Kingston hull form is a proprietary design featuring a delta-pad center-planing-flat which provides the additional lift required for a low trim-angle through the pre-planing transition zone, the "hump".
Standard Features
- MCM 10-year hull warranty
- Proven PowerLift hull
- 5/16” marine grade aluminum hull plate
- 1/4” aluminum decks with non skid
- 5” full-length rub rail
- Welded aluminum handrails forward
- Watertight below-deck bulkheads
- Full instrumentation and controls
- Hydraulic steering
- Suspension helm seats
- Marine head with holding tank
- Sliding aluminum windows
- Tool/Workroom
- Weathertight aft/side cabin doors
- 12volt/110 volt custom electrical panels
- 700 gallons fuel
- Navigation lights
- Full swim platform/jet guard
- Meets ABS Welding & Hull Structure standards
- Electrical to ABYC/I-EEE Standards
Options
- Engine Options: triple or twin diesels
- Drive options: jets, outdrives, shafts, Crewboat / Patrol / Survey / Tour
- Drop down tailgate
- Drop down dive doors with integral ladders
- Removable aft deck railings
- Heating, air conditioning options
- Electronics installation: radar, VHF, GPS, sounder, hailer, etc.
- Duel helm stations/removable flybridge for shipping
- Full marine galley

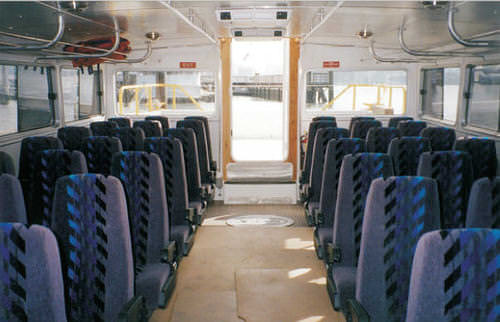

- Seating options up to 50 passsengers
- Painting to customer spec
- Additional fuel tankage
- Lighting arrangements
- Lifesaving equipment
- Canopy
- Push knees
- Genset options
- Rubrail options
- Combatant arrangements
